STD-4C Mailboxes
versatile™ 4C09D-04
Florence 4C mailboxes are USPS approved and meet or exceed STD-4C requirements for new construction and major renovations. They are also ideal for private delivery applications. With numerous pre-configured 4C modules available, be sure to refer to USPS approval guidance in product details below when selecting pre-configured 4C mailboxes for your project.
Total Mailbox Compartments 4
Total Parcel Locker Compartments 1
Product Dimensions 33.75”H x 31.56”W x 17”D
Product Weight 76 lbs
Available Colors
Selection: (4C09D-04-SD)
CREATE PRODUCT DRAWING
4C09D-04 Cut Sheet (PDF)
Current Selection: 4C09D-04
$1,655.00
Add To Cart
Door ID for this Product:
Silver adhesive decals with black numbers 1-4, 1P are included for door identification.
Lead Time: 28 Working Days
Get Custom Quote Get Help

  • 4C standard mailboxes are fully-recessed for in-wall mounting
  • USPS Approved to STD-4C regulations required for all new construction and major renovation projects
  • Heavy gauge aluminum construction with 300 series stainless steel components
  • Superior strength, corrosion resistance, and exceptional durability for indoor AND outdoor installations
  • Silver adhesive decals with black numbers 1-4, 1P are included for door identification
  • Front-loading 4C mailbox includes a carrier access door prepared for a USPS arrow lock (installed by local postal officials) for delivery/service to mailbox
  • Tenant doors include heavy-duty cam locks, each with three (3) keys
  • Includes parcel locker door(s) with unique double-locking mechanism design for added mail package security
  • Outgoing mail collection compartment with slot, anti-fish comb for security, and protective hood is located above access door
  • USPS regulations require a minimum of one parcel locker for every ten tenant compartments and one outgoing mail slot per unit

  • Product Dimensions: 33.75”H x 31.56”W x 17”D

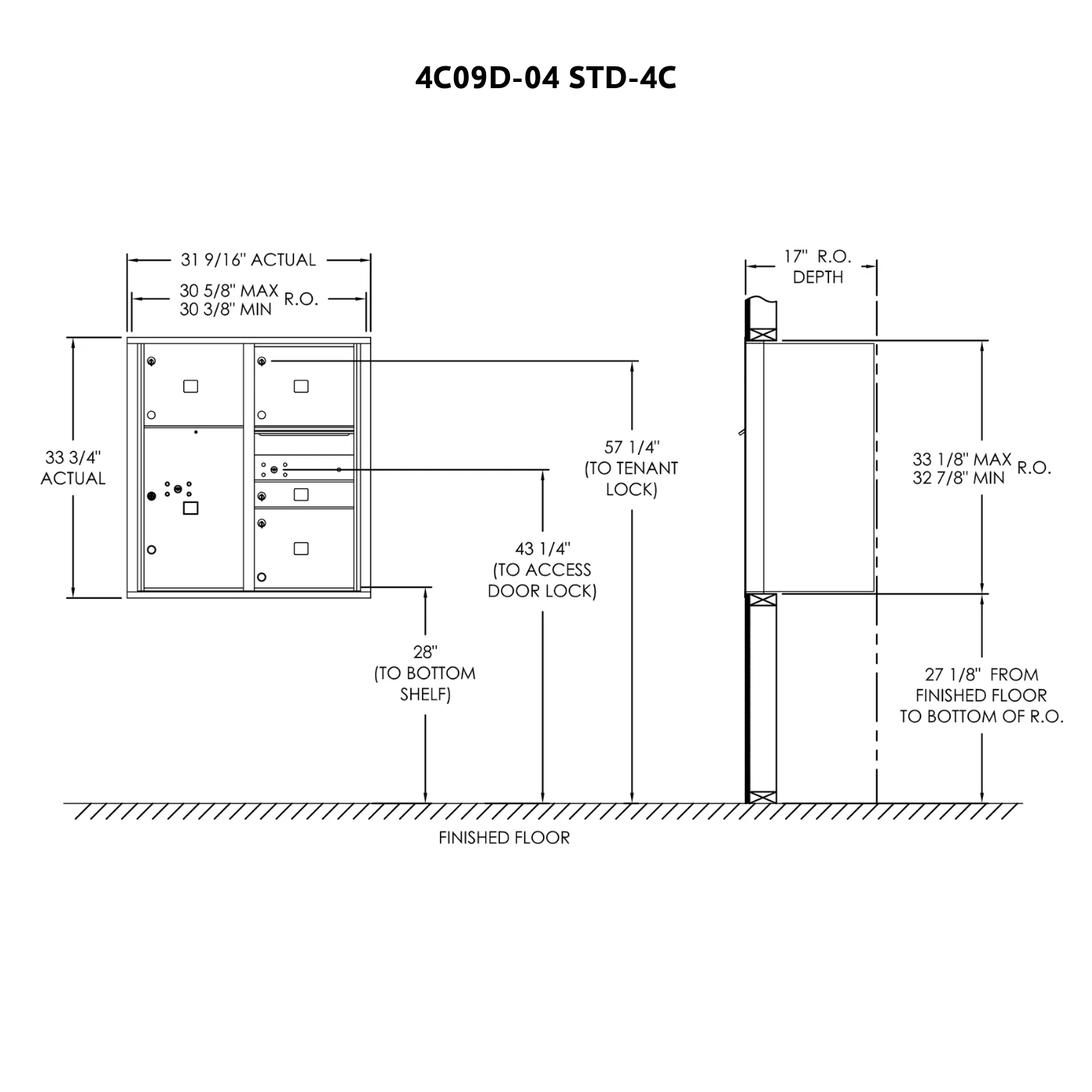

  • Unit height is 33-3/4". See cut sheet for Rough opening details.
  • Unit width is 31-9/16". See cut sheet for Rough opening details.
  • Minimum wall depth of 17" required.
  • Rough opening Dimensions: 33.13”H x 30.63”W x 17”D

  • Outgoing Postal (1H Outgoing): 3”H x 12”W x 15”D
  • Master Collection (1H Master): 3”H x 12”W x 15”D
  • Standard Mail (1H Tenant): 3”H x 12”W x 15”D
  • Standard Mail 2 (3H Tenant): 20.50”H x 12”W x 15”D
  • Parcel Locker (6H Parcel): 20.50”H x 12”W x 15”D
