Horizontal Mailboxes
160075A

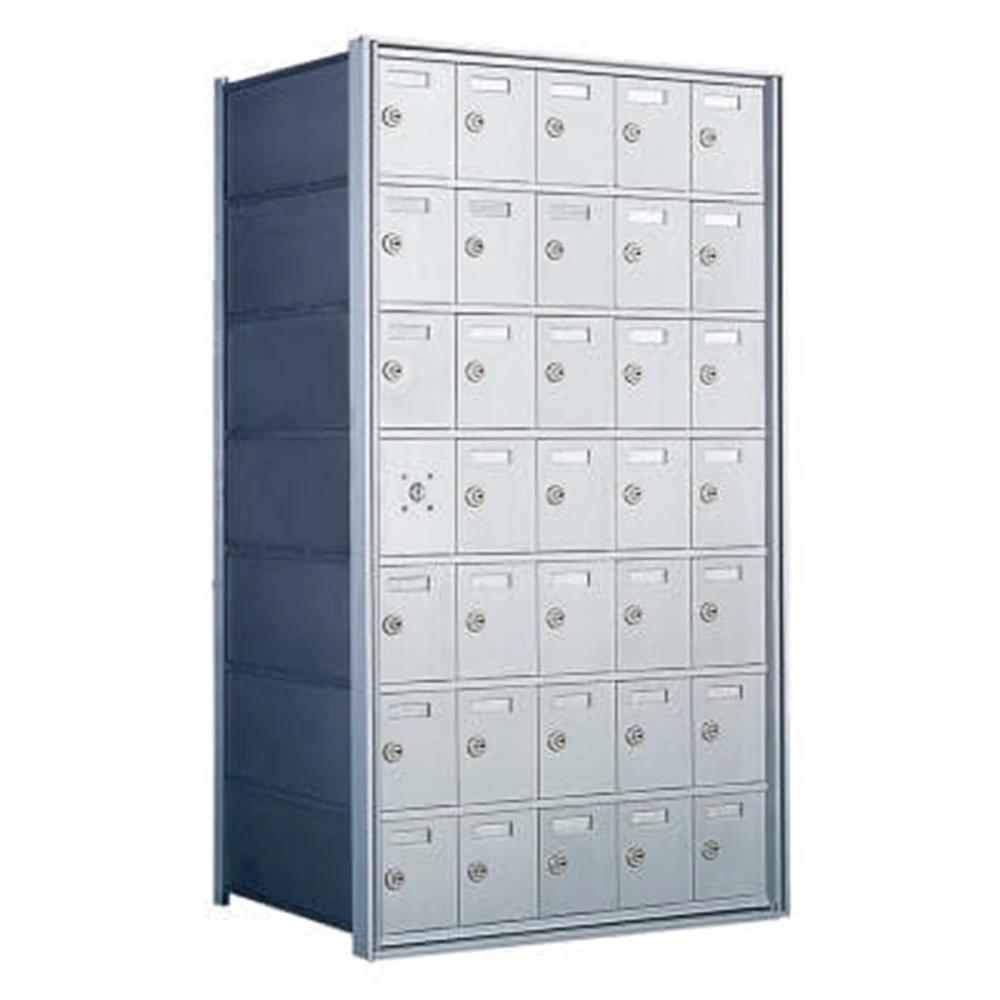

A favorite of university housing managers, this front-loading indoor mailbox solution helps keep your private delivery mail area organized. Since these are private delivery mailboxes, they are not constrained by postal installation regulations and therefore have no minimum or maximum mounting height requirements.
Total Mailbox Compartments 34
Product Dimensions 41.25”H x 24.38”W x 16.50”D
Product Weight 78 lbs
CREATE PRODUCT DRAWING
160075 Cut Sheet (PDF)
Current Selection: 160075A
$2,166.00
Add To Cart
Door ID for this Product:
Number slot with paper cards for identification. Each tenant door includes clear plastic window with metal backplate and card for tenant number identification and labeling in the field.
Lead Time: 28 Working Days
Get Custom Quote Get Help

  • • Horizontal mailbox, front load with 34 doors, front load, fully recessed • Horizontal mailboxes do not meet current USPS requirements for centralized mail delivery – see 4C Mailboxes for USPS Approved wall-mounted mailboxes • All aluminum construction with a clear anodized aluminum finish • Front loading for full in wall mounting and installation • Tenant mail retrieval and private delivery from front of mailbox - one compartment reserved for master Postal access for delivery to unit • Tenant doors include cam lock with two (2) keys each • Number slot with paper cards for identification • Each tenant door includes clear plastic window with metal backplate and card for tenant number identification and labeling in the field • Horizontal mailbox unit is 7 doors high and 5 doors wide - one compartment reserved for private master lock

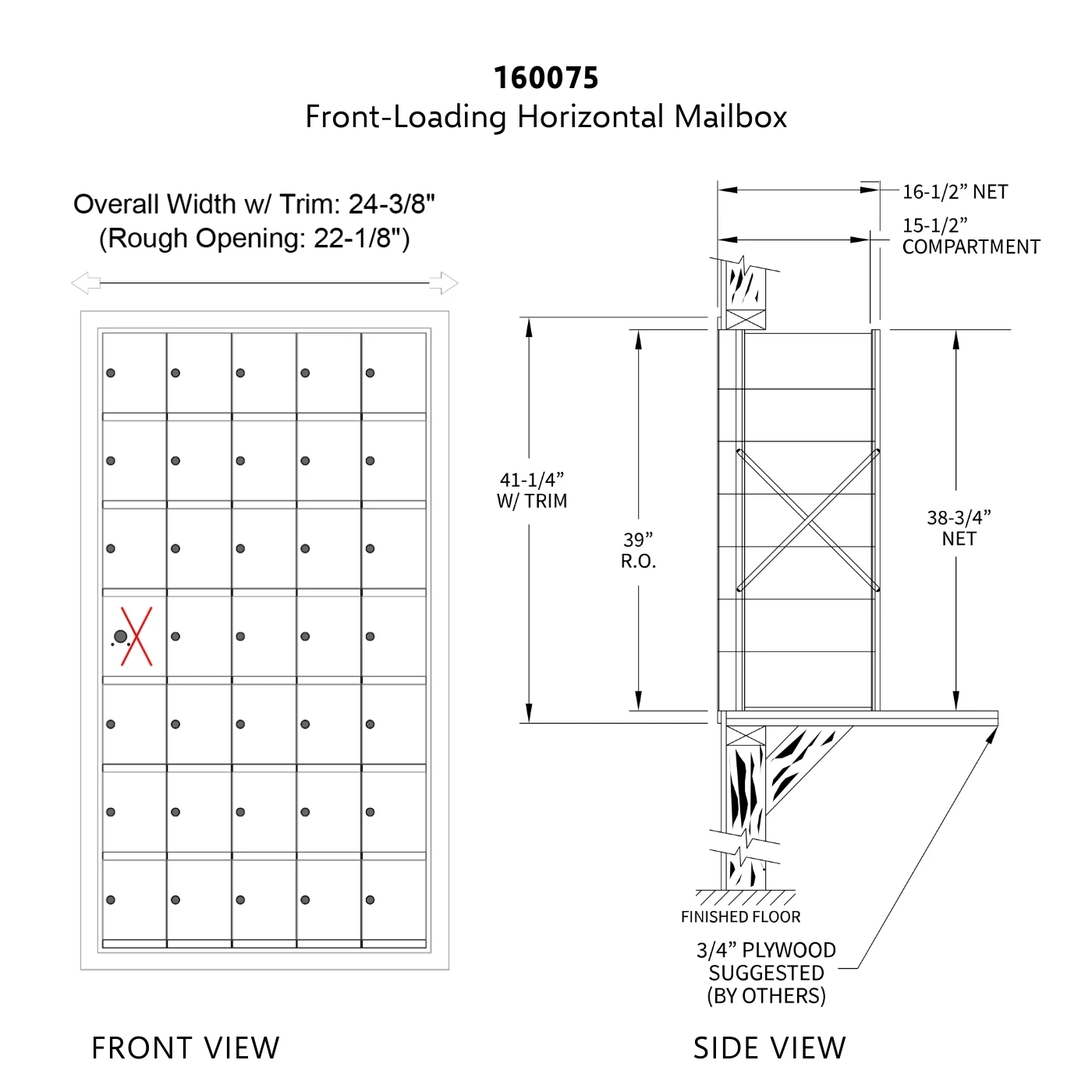

  • Product Dimensions: 41.25”H x 24.38”W x 16.50”D
  • Rough Opening Height is 39"
  • Rough Opening Width is 22-1/8"
  • Minimum wall depth of 17" required
  • Rough opening Dimensions: 39”H x 22.13”W x 17”D

  • 1 x Master Postal (1H x 1W Master): 5”H x 4”W x 15.50”D
  • 34 x Standard Mail (1H x 1W Tenant): 5”H x 4”W x 15.50”D

160075A
