ADA Max Height Suite
Actual:

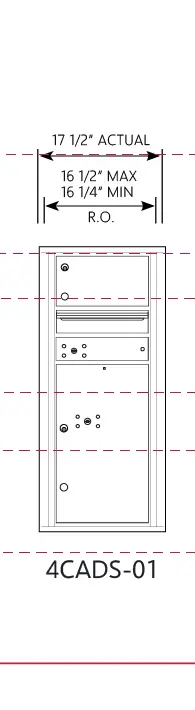

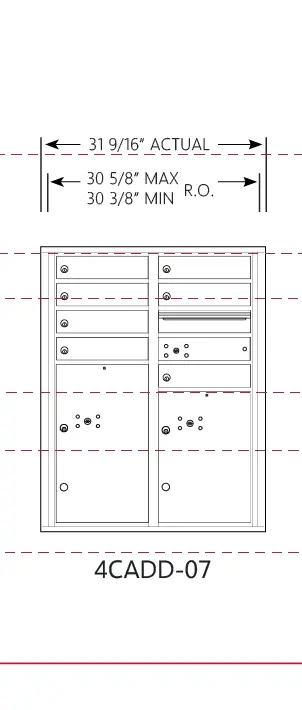

37-1/4”H x 31-9/16”W (Double) or 17-1/2”W (Single) x 17”D
Rough Opening:
36-5/16”H x 30-5/16”W (Double) or 16-1/4”W (Single) x 17”D
Preconfigured versatile™ 4C ADA Max Height Mailboxes
Versatility is the key to good design when planning for single or multifamily residential or commercial projects. Florence preconfigured 4C mailbox designs and customizable configurations make it easy to design a centralized mail area just right for your project. Offering both USPS Approved and ADA Compliant design options, which are critical components of a functional mailroom. Find additional resources, product specs, and BIM models in the downloads section or design your mailbox project using the configurator tool all found below.
NOTE: All ADA Max Height Suite 4C Modules meet ADA upper reach limit of 48" FFF when installed at recommended height. For more information on ADA requirements, visit our Compliance page.
Product Features
-
- 4C standard mailboxes are fully-recessed for in-wall mounting
- USPS Approved to STD-4C regulations required for all new construction and major renovation projects
- Heavy gauge aluminum construction with 300 series stainless steel components
- Superior strength, corrosion resistance, and exceptional durability for indoor AND outdoor installations
- Silver adhesive decals with black numbers are included for door identification
- Front-loading 4C mailbox includes a carrier access door prepared for a USPS arrow lock (installed by local postal officials) for delivery/service to mailbox
- Tenant doors include heavy-duty cam locks, each with three (3) keys
- Parcel locker door(s) have unique double-locking mechanism design for added mail package security
- Outgoing mail collection compartment with slot, anti-fish comb for security, and protective hood located above access door
- USPS regulations require a minimum of one parcel locker for every five tenant compartments and one outgoing mail slot per unit
Available Colors
Customize your 4C module with one of eight durable powder coat finishes.
Downloads & Product Info
|
|
|
|
|
|
|
|
|
|
|
|

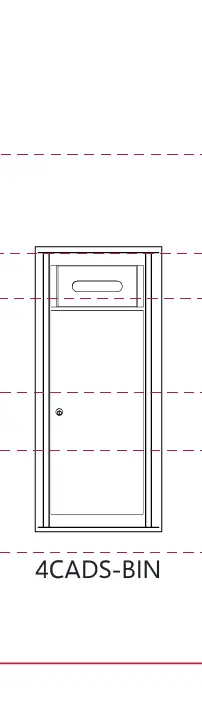

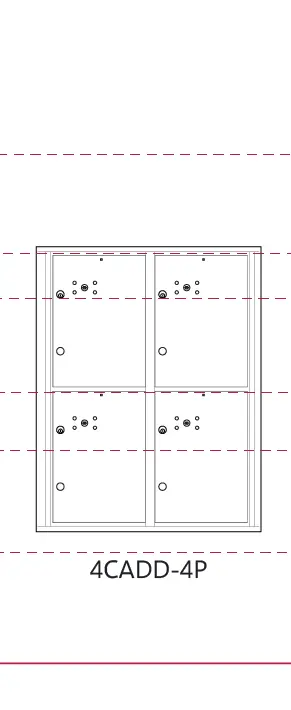

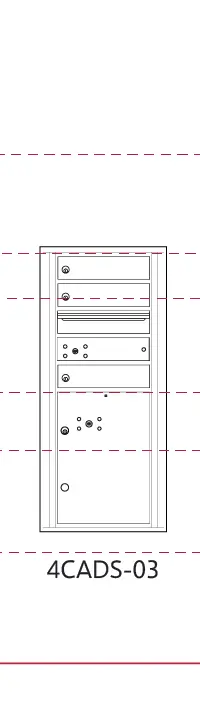

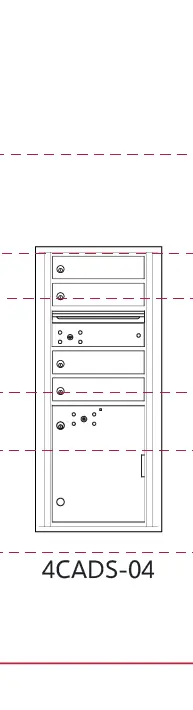

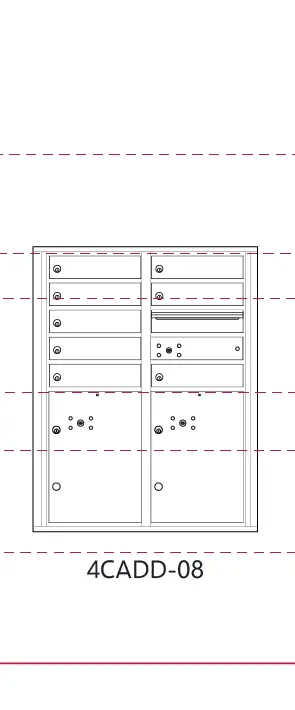

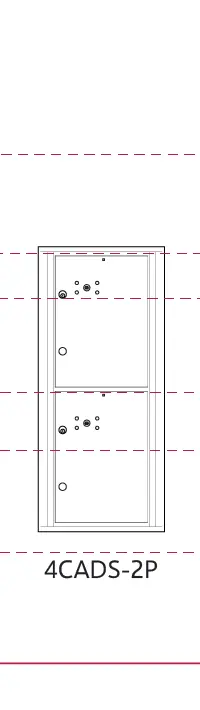

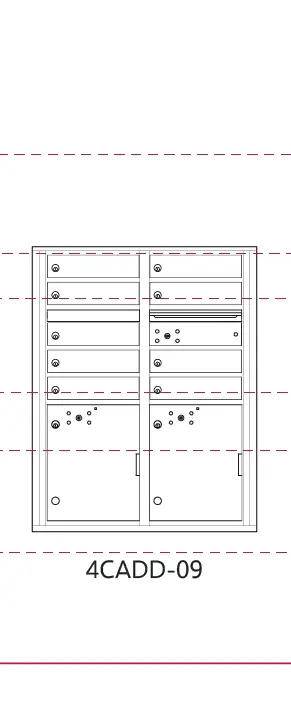

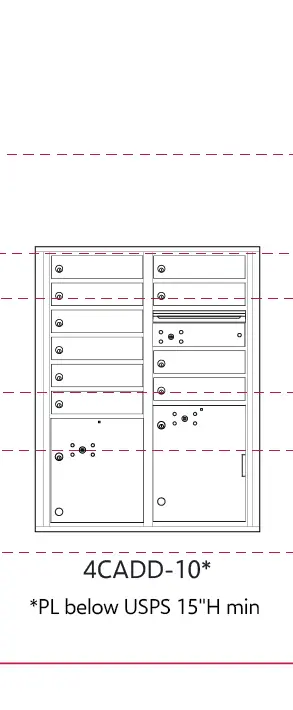

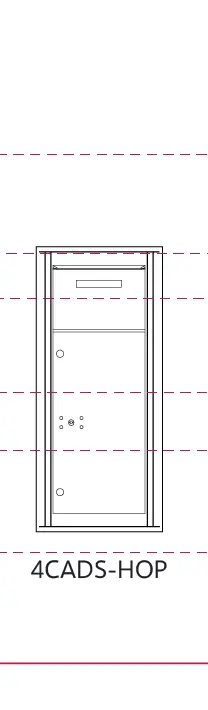

| Model | 4CADD-07 | 4CADD-08 | 4CADD-09 | 4CADD-10 | 4CADD-4P | 4CADS-01 | 4CADS-03 | 4CADS-04 | 4CADS-2P | 4CADS-BIN | 4CADS-HOP |
| # Mailboxes (Total) | 7 | 8 | 9 | 10 | 0 | 1 | 3 | 4 | 0 | 0 | 0 |
| # Parcel Lockers (Total) | 2 | 2 | 2 | 2 | 4 | 1 | 1 | 1 | 2 | 0 | 0 |
| # Collection | 1 | 1 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| # BINS | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
| # Mailboxes Under 48” | 7 | 8 | 9 | 10 | 0 | 1 | 3 | 4 | 0 | 0 | 0 |
| Module Weight (lbs) | 89 | 88 | 96 | 91 | 80 | 46 | 49 | 55 | 43 | 52 | 41 |
